Create a directed network-style graph

Source: R/geom_glyph.R
geom_glyph.Rd

Create a network-style graph that illustrates directed pairwise relationships using custom edges.

Usage

geom_glyph(
  mapping = NULL,
  data = NULL,
  edge_size = 1,
  edge_colour = "grey",
  edge_fill = NULL,
  edge_alpha = 1,
  node_size = 1,
  node_colour = "black",
  node_fill = NULL,
  node_alpha = 1,
  node_shape = 21,
  node_spacing = 1,
  label_size = 12,
  group_label_size = 13,
  legend_title = NULL,
  legend_subtitle = NULL,
  ...,
  stat = "identity",
  position = "identity",
  na.rm = FALSE,
  show.legend = TRUE,
  inherit.aes = TRUE
)

Arguments

mapping

Set of aesthetic mappings created by aes(). You must supply mapping if there is no plot mapping.

data

A DataFrame with preprocessed data from either gglyph::preprocess_data_general() or gglyph::preprocess_data_statistical(). To be passed to ggplot2::ggplot().

edge_size

A numeric scaling factor indicating the size/width of the edges. Default is 1.

edge_colour

Color(s) of the edge outlines. Can be a single string (for non-grouped data) or a vector of strings or a function (for grouped data). Default is "grey".

edge_fill

Color(s) for the edge fill. Can be a single string, a vector of strings, or a color function. If NULL, defaults to edge_colour.

edge_alpha

A numeric value indicating the transparency of the edges. Default is 1.

node_size

A numeric value indicating the size of the nodes. Default is 8.

node_colour

Color(s) of the node outlines. Can be a single string (for non-grouped data) or a vector of strings or a function (for grouped data). Default is "black".

node_fill

Color for the node fill. If NULL, defaults to node_colour.

node_alpha

A numeric value indicating the transparency of the nodes. Default is 1.

node_shape

A numeric value specifying the shape of the nodes, following ggplot2's shape specifications. Default is 21 (a circle with a border).

node_spacing

A numeric scaling factor for the distance between nodes. Values > 1 will push nodes further apart, while values < 1 will bring them closer. Default is 1.

label_size

A numeric value indicating the size of the node labels. Default is 12.

group_label_size

A numeric value indicating the size of group label. Default is 13.

legend_title

Title for the legend as a string.

legend_subtitle

Subtitle for the legend as a string.

...

Additional arguments passed to ggplot2 layer.

stat

The statistical transformation to use on the data for this layer.

position

A position adjustment to use on the data for this layer.

na.rm

If FALSE, the default, missing values are removed with a warning. If TRUE, missing values are silently removed.

show.legend

Should this layer be included in the legends? Default is TRUE.

inherit.aes

If FALSE, overrides the default aesthetics, rather than combining with them. Default is FALSE.

Value

A ggplot2 layer with custom network-based graph.

See also

ggplot2::ggsave()

Examples

# For non-grouped/-facetted plot
data <- gglyph::generate_mock_data(n_groups = 1)

ggplot2::ggplot(data = data) +
  gglyph::geom_glyph()

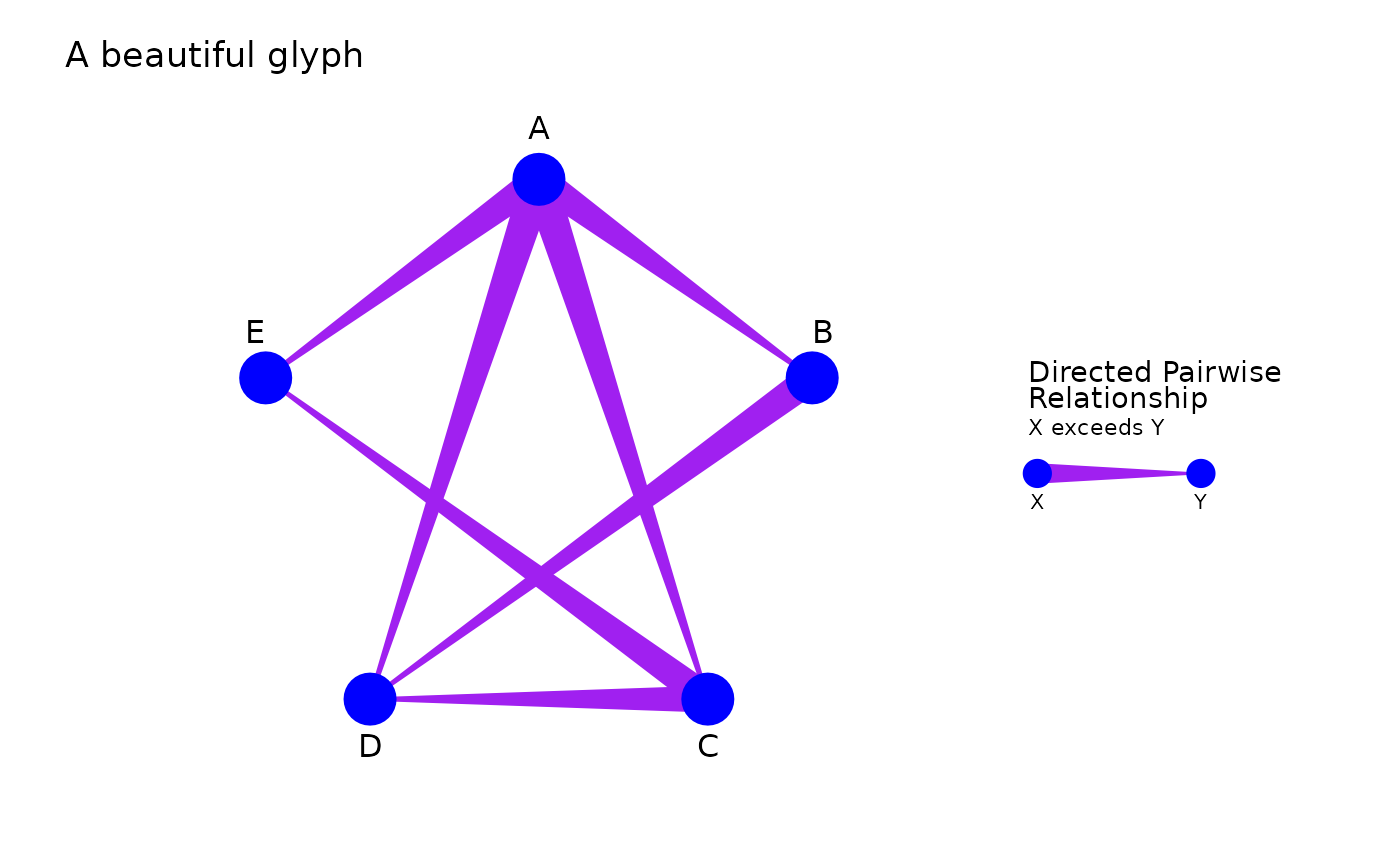

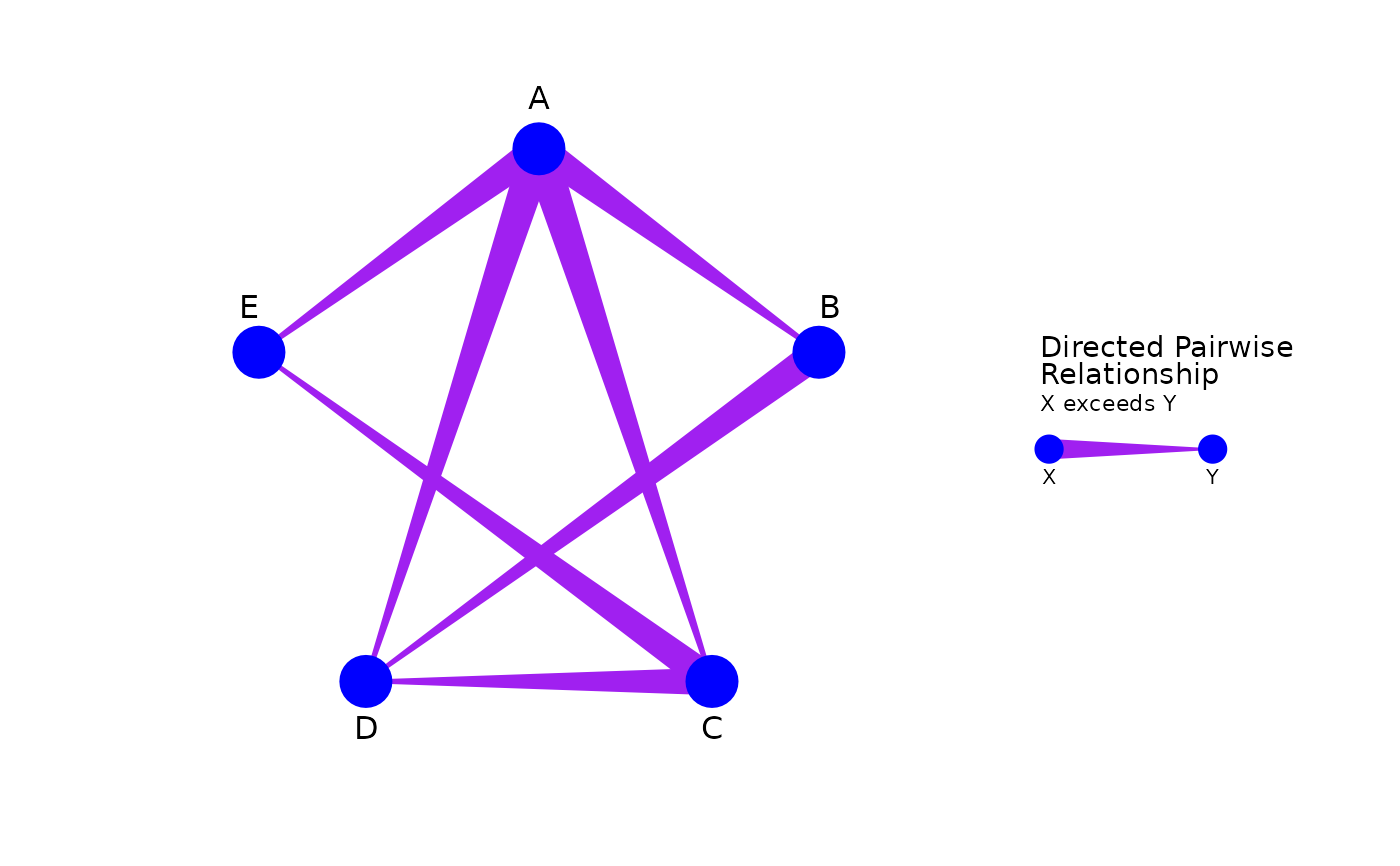

ggplot2::ggplot(data = data) +
  gglyph::geom_glyph(edge_colour = "purple", node_colour = "blue")


ggplot2::ggplot(data = data) +
  gglyph::geom_glyph(edge_colour = "purple", node_colour = "blue") +
  ggplot2::labs(title = "A beautiful glyph")


# For grouped/facetted plot
data <- gglyph::generate_mock_data(n_groups = 3)

ggplot2::ggplot(data = data) +
  gglyph::geom_glyph() +
  ggplot2::facet_wrap(~ group)


ggplot2::ggplot(data = data) +
  gglyph::geom_glyph(edge_colour = viridis::viridis, node_colour = viridis::viridis) +
  ggplot2::facet_wrap(~ group)


ggplot2::ggplot(data = data) +
  gglyph::geom_glyph(edge_colour = viridis::viridis, node_colour = viridis::viridis) +
  ggplot2::facet_wrap(~ group) +
  ggplot2::labs(title = "Beautiful glyphs")
